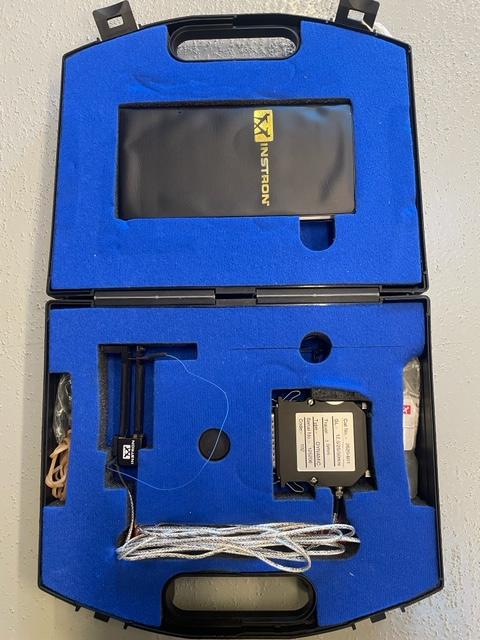

Dynamic Extensometer 12.5 mm GL ±5 mm Travel

Specifications

Dynamic Extensometer 12.5 mm GL ±5 mm Travel

The dynamic Extensometer is a device to measure changes in the length of an object. It is useful for stress-strain measurement for tensile, compressive & fatigue testing.

Specifications

Dynamic Extensometer 12.5 mm GL ±5 mm Travel

The dynamic Extensometer is a device to measure changes in the length of an object. It is useful for stress-strain measurement for tensile, compressive & fatigue testing.

  • The extensometer has a 12.5mm gauge length with a travel of ±5mm giving ±40% strain. It includes a 12.5mm extender to give a gauge length of 25mm and ±20% strain and a 37.5mm extender to give a gauge length of 50mm and strain of ±10%.
  • Full scale range: ±5 mm
  • Frequency range: 0-50 Hz
