CSS450, Linkam

Specifications

CSS450, Linkam

Optical Shearing System, allows the structural dynamics of complex fluids to be directly observed via a standard optical microscope while they are under precisely controlled temperature and various shear modes.

Specifications

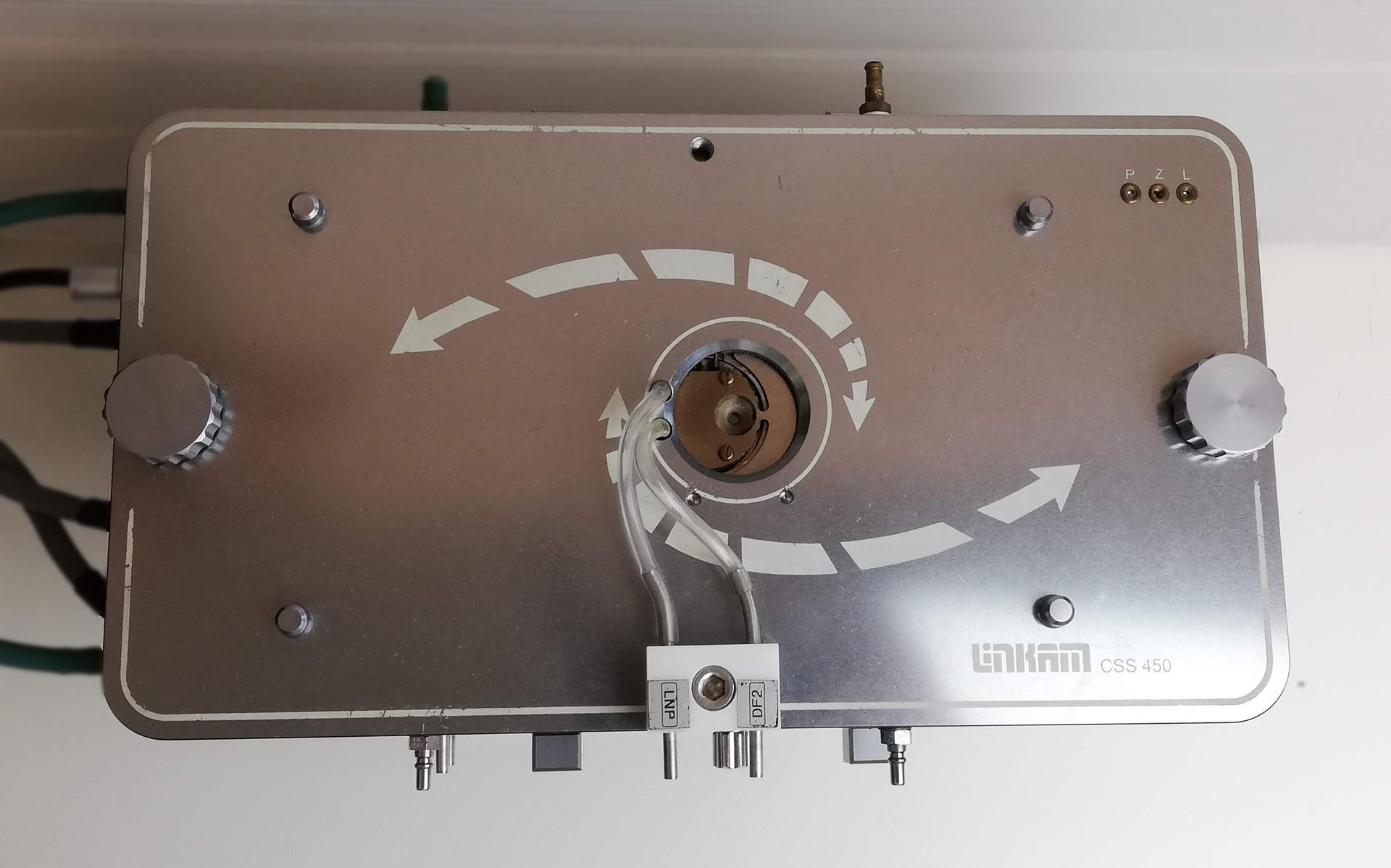

CSS450, Linkam

Optical Shearing System, allows the structural dynamics of complex fluids to be directly observed via a standard optical microscope while they are under precisely controlled temperature and various shear modes.

Equipment specifications:

  • Temperature range ambient to 450°C (-50°C to 450°C on Cryo CSS450)
  • Temperature rates of between 0.01°C to 60°C/min
  • Temperature stability +/-0.2°C
  • Objective lens minimum working distance 7.4mm
  • Condenser lens minimum working distance 15mm
